Solutions for Automation
Applications in the Automation Sector
In the automation sector, linear guides, ball screws, rack and pinion systems, and flexible couplings are foundational components used to deliver precise, repeatable motion control, often in high-speed, high-accuracy environments. Here's how each plays a role:

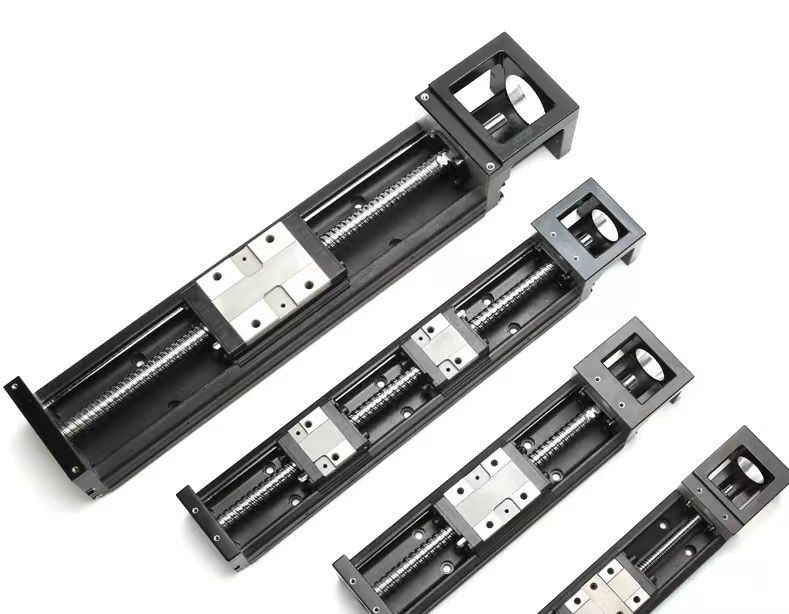

Linear Guides
Function:
Provide smooth and precise linear motion.
Common Uses:
- Robotics: For accurate positioning of end effectors.
- CNC machines: Enabling precise tool path movement.
- Assembly lines: Supporting pick-and-place systems.
- Packaging machines: Ensuring consistent sealing, cutting, or labelling movements.
Benefits:
- High load capacity with low friction.
- High rigidity and repeatability.

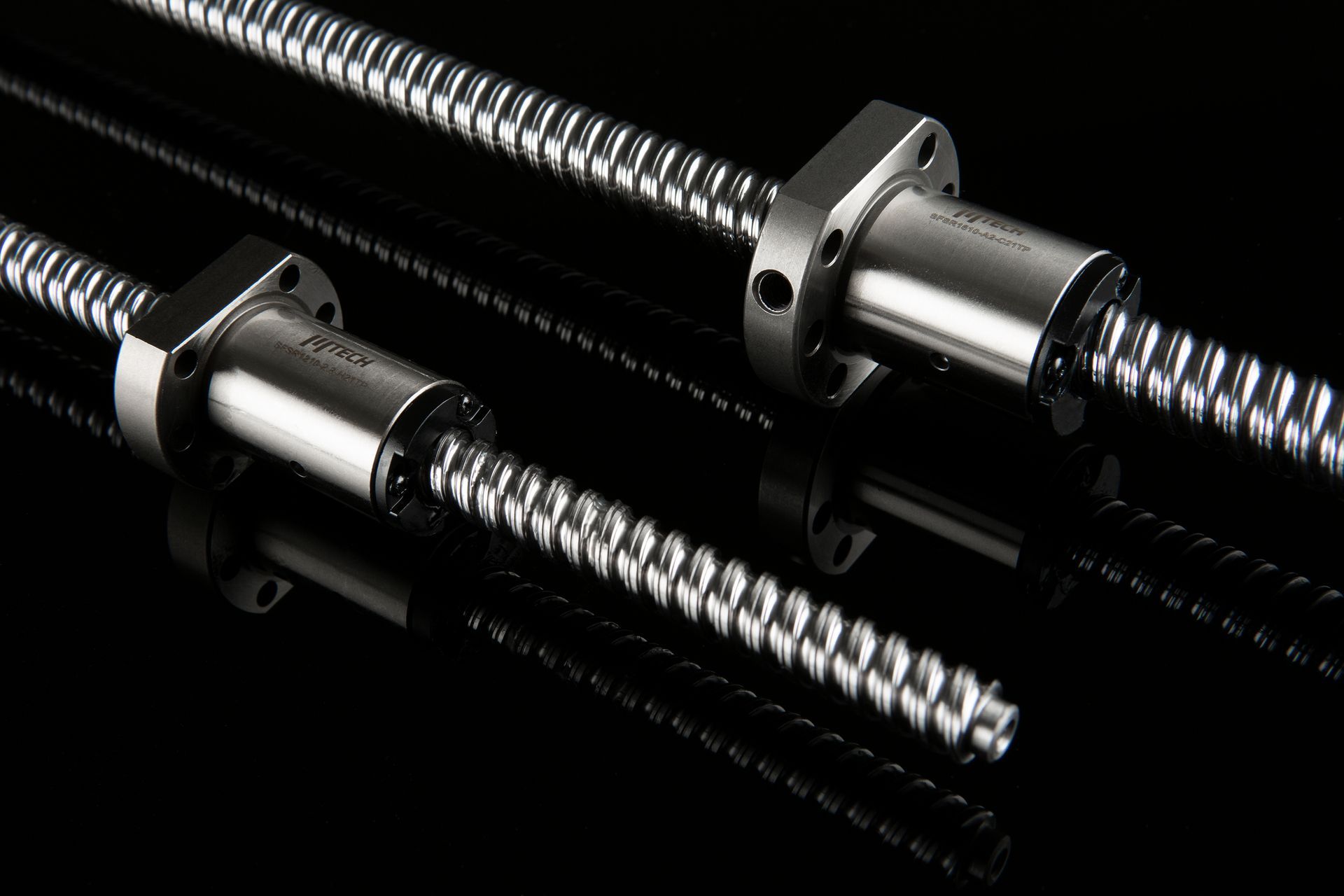

Ball Screws
Function:
Convert rotary motion to linear motion with high efficiency.
Common Uses:
- Actuators: For automated tool changers or welding heads.
- Precision positioning systems: Used in 3D printers and inspection systems.
- Servo-driven tables: Where fine resolution and accuracy are key.
Benefits:
- High precision and repeatability.
- Efficient force transmission with minimal backlash.

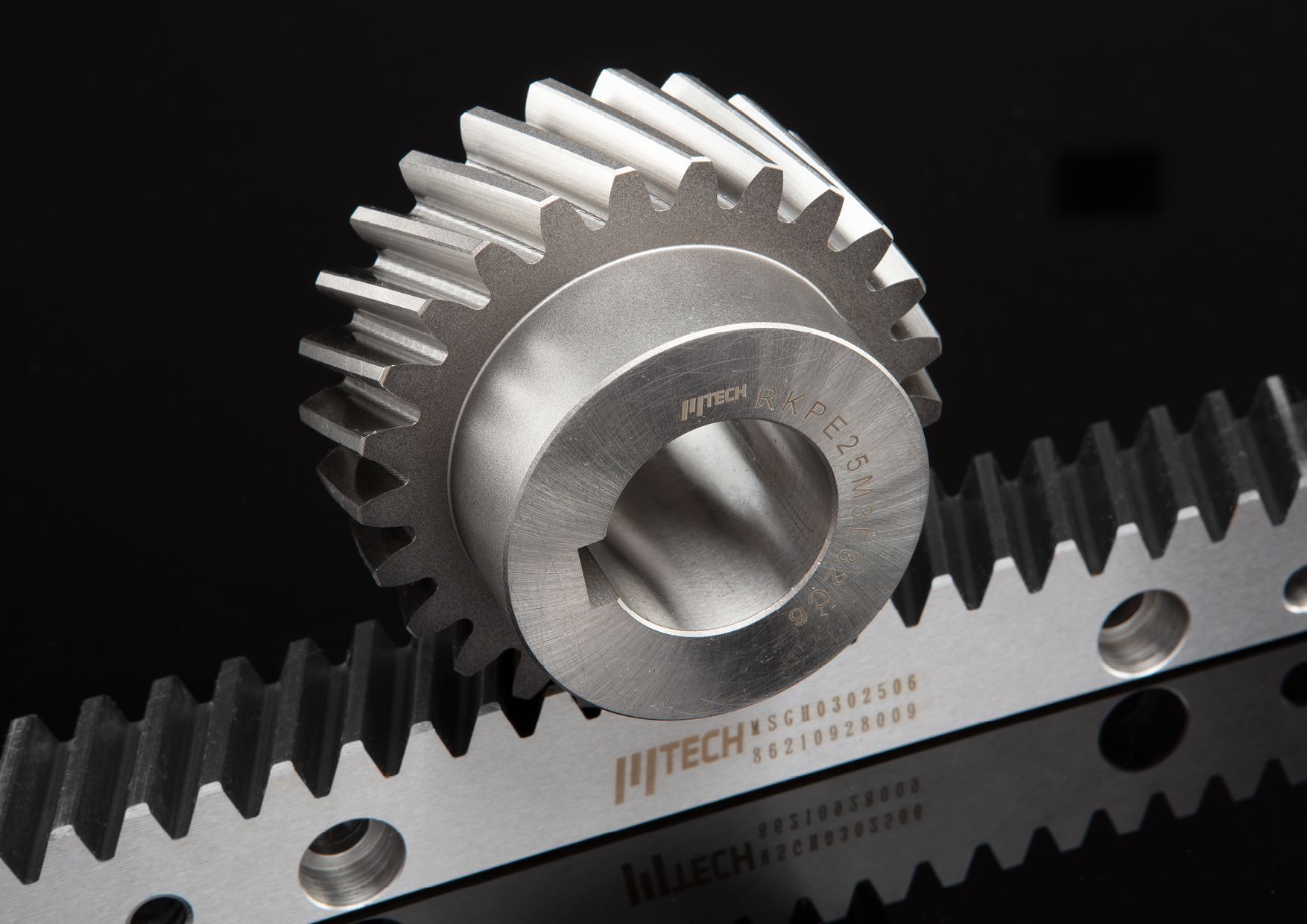

Rack and Pinion Systems
Function:
Convert rotational motion into linear motion (or vice versa) over longer travel distances.
Common Uses:
- Gantry systems: For moving large payloads over long spans.
- Industrial robots: For base axis movement.
- Material handling equipment: Pallet movers or linear transport systems.
Benefits:
- Suitable for long strokes.
- High speed and high force transmission.

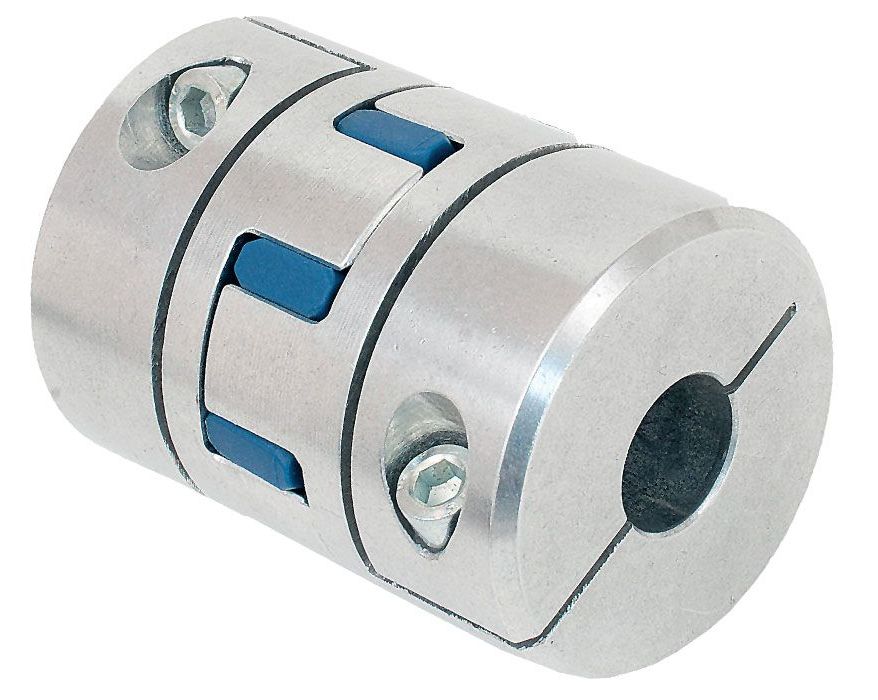

Flexible Couplings
Function:
Transmit torque between shafts while accommodating misalignments.
Common Uses:
- Servo motors to screw shafts: Dampen vibration and compensate for misalignment.
- Encoders and feedback systems: Preventing transmission errors.
- Automated conveyors: Absorbing shock loads from stop/start motion.
Benefits:
- Protects components from misalignment stress.
- Reduces maintenance and improves system life.
Summary of Benefits in Automation
Linear Guides
Motion Type
Linear.
Key Benefit
Smooth, precise motion.
Typical Automation Use Case
Robots, CNCs, inspection systems.
Ball Screws
Motion Type
Rotary to Linear.
Key Benefit
High accuracy, low backlash.
Typical Automation Use Case
Pick-and-place, actuators, 3D printing.
Rack & Pinion
Motion Type
Rotary/Linear.
Key Benefit
Long travel, high speed.
Typical Automation Use Case
Gantries, handling systems, transfer lines.
Flexible Couplings
Motion Type
Rotary.
Key Benefit
Compensates misalignment, vibration.
Typical Automation Use Case
Servo systems, drive trains, conveyors.
